Steedvision HD-3100: 5-Inch 8MP Coaxial HD CCTV Tester

Details

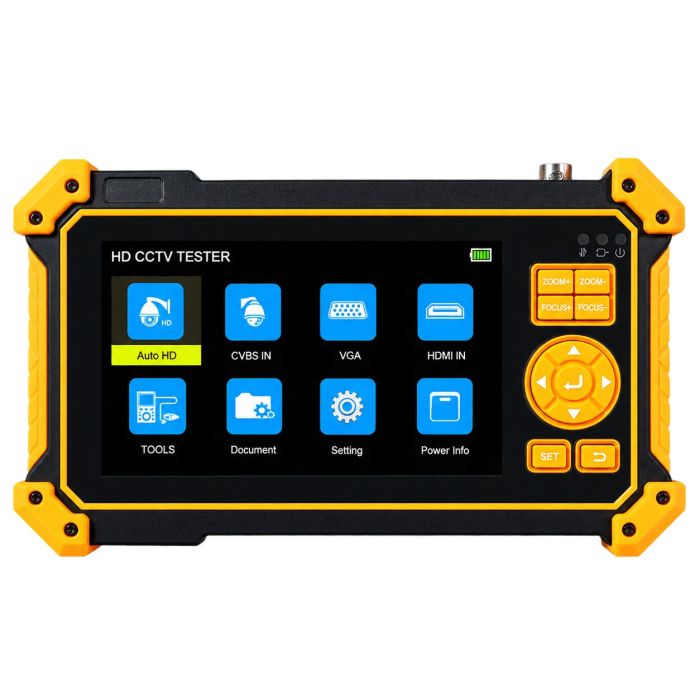

The Steedvision HD-3100 is a compact and efficient 5-inch CCTV camera tester with an 800x480 TFT-LCD screen. Designed for professionals, it supports 8MP coaxial HD testing (TVI, CVI, AHD), HDMI input up to 4K, VGA input up to 1920x1200, and PTZ control with RS485 compatibility. Additional features include UTP cable testing, audio signal input testing, and DC power output for cameras. Its 5200mAh battery ensures 5-8 hours of operation, making it an essential tool for camera installation and maintenance.

Specifications

General
BrandSteedvision
ModelHD-3100 Plus
Display5 inch TFT-LCD screen(Non-touch screen), 800x480 resolution
LanguageEnglish, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc
Working Temperature-10℃ to +50℃ (14℉ to 122℉)
Working Humidity30% to 90%
Dimension/WeightTester: 183x110x36.5mm(7.2x4.33x1.44inch) / 400g(0.88lb)
Package: 260x143x100mm(10.24x5.63x3.94inch) / 1050g(2.31lbs)
Package included1 x Tester
1 x Tool bag
1 x Power adapter
1 x Power output cable
1 x BNC video cable
1 x RS485 cable
1 x Audio Test cable
1 x Shoulder Strap
1 x Wristband

Coaxial HD test
TVI camera test8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu
CVI camera test8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu
AHD camera test8MP AHD camera test, 3840 x 2160P 15FPS, UTC control / call OSD menu
SDI camera testN/A, This feature requires a higher-end model.
CVBS camera test1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc Coaxial HD test
Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu

Video input
HDMI input1 ch, support max 4K 3840x2160p/30fps
VGA input1 ch, support max 1920 x 1200P 60FPS.

Power output
DC5V/1A power outputsupply temporarily power for the home camera and phone.
DC12V/1A power Outputsupply temporarily power for the camera

Cable test
Cable tracerTest UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

Audio test
Audio input1 channel audio signal input, test whether sound normal.

Power supply
Power supplyDC 5V/1A input, micro USB port

Battery
TypeBuilt-in 3.7V Lithium polymer battery, 5200mAh, 19.24W/h
Charging timeAfter charging 3-4 hours
Working timenormal working time 5-8 hours

General

Brand

Steedvision

Model

HD-3100 Plus

Display

5 inch TFT-LCD screen(Non-touch screen), 800x480 resolution

languages

English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

Working Temperature

-10℃ to +50℃ (14℉ to 122℉)

Working Humidity

30% to 90%

Dimension/Weight

Tester: 183x110x36.5mm(7.2x4.33x1.44inch) / 400g(0.88lb)
Package: 260x143x100mm(10.24x5.63x3.94inch) / 1050g(2.31lbs)

Package included

1 x Tester
1 x Tool bag
1 x Power adapter
1 x Cable tracer
1 x Power output cable
1 x BNC video cable
1 x RS485 cable
1 x Audio Test cable
1 x Shoulder Strap
1 x Wristband

Coaxial HD test

TVI camera test

8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu

CVI camera test

8MP CVI camera test, 3840 x 2160P 12.5/15fps,UTC control/call OSD menu

AHD camera test

8MP AHD camera test, 3840 x 2160P 15fps, UTC control/call OSD menu

SDI camera test

N/A, This feature requires a higher-end model.

CVBS camera test

1 ch, support max 4K 3840x2160p/30fps
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc Coaxial HD test

Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu

Video input

HDMI input

1 ch, support max 4K 3840x2160p/30fps

VGA input

1 ch, support max 1920 x 1200P 60fps

Power output

DC5V/1 power output

supply temporarily power for the home camera and phone.

DC12V/1A power Output

supply temporarily power for the camera

Cable test

UTP cable test: Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

Audio test

Audio input

1 ch audio signal input, test whether sound normal.

Power supply

DC 5V/1A input, micro USB port

Battery

Type

Built-in 3.7V Lithium polymer battery, 5200mAh, 19.24W/h

Charging time

After charging 3-4 hours

Working time

normal working time 5-8 hours

HD3000 Series Feature Comparison

	HD-3100 Plus	HD-3200 Plus
CVBS camera test	✓	✓
AHD camera test	✓	✓
CVI camera test	✓	✓
TVI camera test	✓	✓
SDI camera test	✗	✓
PTZ control	✓	✓
HDMI input	✓	✓
VGA input	✓	✓
	Buy Now	Buy Now

HD3000 Series

More Information

More Information
Brand	Steedvision
Model	HD-3100 Plus
Display	5 inch TFT-LCD screen(Non-touch screen), 800x480 resolution
CCTV camera test	CVBS ◉1 channel BNC input, NTSC/PAL (Auto adapt) ◉PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc Coaxial HD test ◉8MP TVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu ◉8MP CVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu ◉8MP AHD camera test: 3840 x 2160P 15FPS, UTC control / call OSD menu ◉Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu
Video input	HDMI input: 1 ch HDMI input, support max 4K 30FPS. VGA input: 1 ch VGA input, support max 1920 x 1200P 60FPS.
Power output	◉DC5V/1A power output, supply temporarily power for the home camera and phone. ◉DC12V/1A power output, supply temporarily power for the camera
Cable test	UTP cable test: Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.
Audio test	1 channel audio signal input, test whether sound normal.
Power supply	Input: DC 5V/1A input, micro USB port
Battery	Built-in 3.7V Lithium polymer battery, 5200mAh, 19.24W/h After charging 3-4 hours, normal working time 5-8 hours
Language	English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc
Working environment	◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉) ◉Working Humidity: 30% to 90%
Dimension/Weight	◉Tester: 183x110x36.5mm(7.2x4.33x1.44inch) / 400g(0.88lb) ◉Package: 260x143x100mm(10.24x5.63x3.94inch) / 1050g(2.31lbs)
Package included	1 x Tester 1 x Power adapter 1 x Cable test box 1 x Power output cable 1 x BNC video cable 1 x RS485 cable 1 x Audio Test cable 1 x Tool bag 1 x Shoulder Strap 1 x Wristband 1 x User manual
