Steedvision HD-3200 Plus Coaxial Security Camera Tester

Be the first to review this product

Special Price $179.00 Regular Price $249.00

In stock

SKU

HD-3200 Plus

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

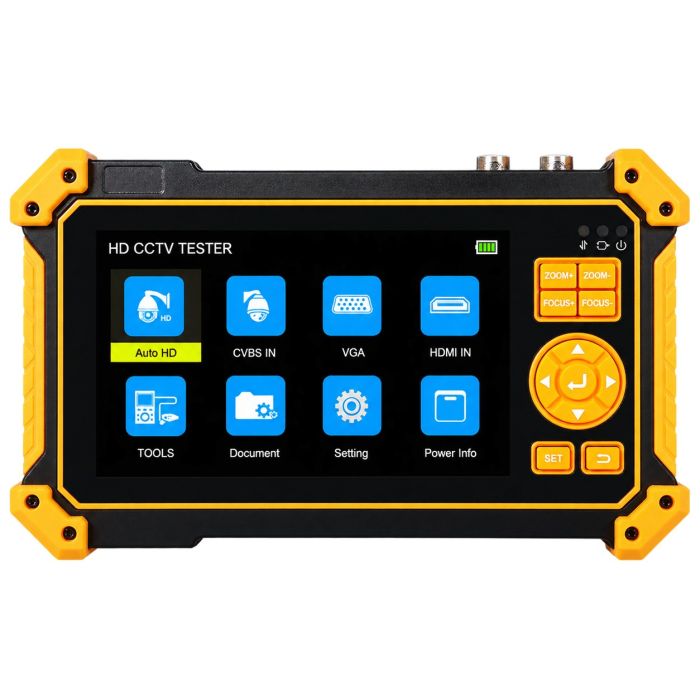

The Steedvision HD-3200 Plus is a versatile 5-inch TFT-LCD CCTV camera tester with an 800x480 resolution screen, ideal for professionals handling HD and analog camera installations. It supports up to 8MP coaxial HD camera testing (TVI, CVI, AHD, EX-SDI, HD-SDI, 3G-SDI), along with HDMI input up to 4K and VGA input up to 1920x1200. The device features UTP cable testing, PTZ control via RS485, and audio signal testing, ensuring a comprehensive toolkit for maintenance. With DC power output and a 5200mAh battery, it’s portable and efficient for field operations.

Note:
Remember to remove the battery insulation film before use.
If you need any assistance, please contact our customer service.

	HD-3100 Plus	HD-3200 Plus
CVBS camera test	✓	✓
AHD camera test	✓	✓
CVI camera test	✓	✓
TVI camera test	✓	✓
SDI camera test		✓
PTZ control	✓	✓
HDMI input	✓	✓
VGA input	✓	✓

More Information

More Information
Brand	Steedvision
Model	HD-3200 Plus
Display	5 inch TFT-LCD screen(Non-touch screen), 800x480 resolution
CCTV camera test	CVBS ◉1 channel BNC input, NTSC/PAL (Auto adapt) ◉PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc Coaxial HD test ◉8MP TVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu ◉8MP CVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu ◉8MP AHD camera test: 3840 x 2160P 15FPS, UTC control / call OSD menu ◉8MP EX-SDI, HD-SDI, 3G-SDI camera test: UTC control / call OSD menu ◉Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu
Video input	◉HDMI input: 1 ch HDMI input, support max 4K 30FPS. ◉VGA input: 1 ch VGA input, support max 1920 x 1200P 60FPS.
Power output	◉DC5V/1A power output, supply temporarily power for the home camera and phone. ◉DC12V/1A power output, supply temporarily power for the camera
Cable test	UTP cable test: Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.
Audio test	1 channel audio signal input, test whether sound normal.
Power supply	Input: DC 5V/1A input, micro USB port
Battery	Built-in 3.7V Lithium polymer battery, 5200mAh, 19.24W/h After charging 3-4 hours, normal working time 5-8 hours
Language	English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc
Working environment	◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉) ◉Working Humidity: 30% to 90%
Dimension/Weight	◉Tester: 183x110x36.5mm(7.2x4.33x1.44inch) / 400g(0.88lb) ◉Package: 260x143x100mm(10.24x5.63x3.94inch) / 1050g(2.31lbs)
Package included	1 x Tester 1 x Power adapter 1 x Cable test box 1 x Power output cable 1 x BNC video cable 1 x RS485 cable 1 x Audio Test cable 1 x Tool bag 1 x Shoulder Strap 1 x Wristband 1 x User manual
