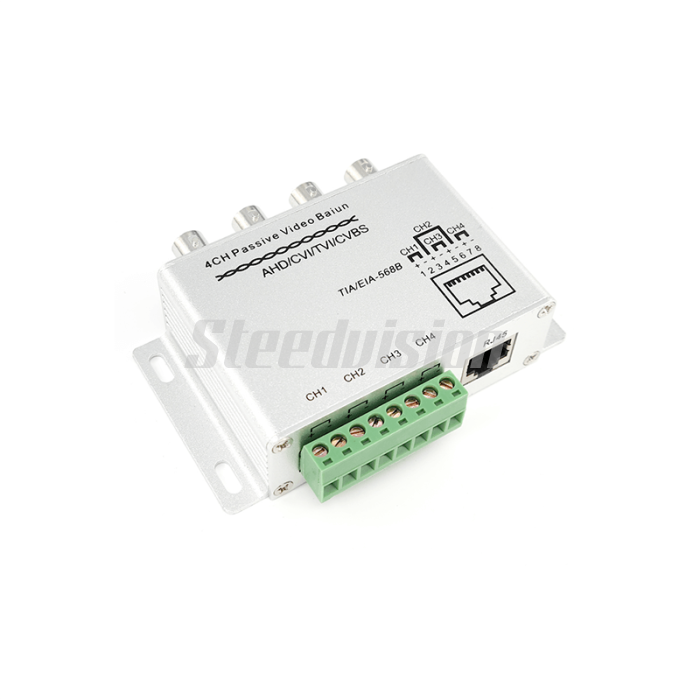

4CH Passive Video Balun For RJ45 Twisted Pairs to BNC, HD-CVI/TVI/AHD Analog Signal by UTP Cable

Overview:

The HD Video Balun converts video signals into a balanced format, allowing transmission over standard Cat-5 unshielded twisted-pair cabling. It is designed for applications such as video surveillance, video conferencing, and other scenarios requiring long-distance video transmission. This device simplifies wiring projects and reduces cable costs by enabling the transmission of four video channels simultaneously over a single 8-core Cat-5 cable.

Key Features and Benefits:

• Broad HD Video Compatibility:
  • Supports HD-CVI, HD-TVI, and HD-AHD video formats.
  • Compatible with NTSC, PAL, and SECAM video systems.
• Extended Transmission Distances:
  • HD-CVI: Up to 450m (720P), 250m (1080P).
  • HD-TVI: Up to 250m (720P/1080P).
  • HD-AHD: Up to 320m (720P), 250m (1080P).
• Efficient Cabling:
  • Transmits four video channels over a single 8-core Cat-5 cable.
  • Reduces cable usage and installation complexity.
• Superior Signal Quality:
  • 60dB crosstalk and noise immunity for clear video transmission.
  • Built-in transient suppression for enhanced reliability.
• Passive Operation:
  • Requires no external power supply.

Technical Specifications:

• Video Formats:

  • HD-CVI, HD-TVI, HD-AHD, NTSC, PAL, SECAM
• Transmission Distance:
  • HD-CVI: 720P (450m), 1080P (250m)
  • HD-TVI: 720P/1080P (250m)
  • HD-AHD: 720P (320m), 1080P (250m)
• Crosstalk and Noise Immunity: 60dB
• Protection: Built-in transient suppression
• Power: Passive (no power required)
• Channels: 4
• Frequency Response: DC to 60MHz
• Attenuation: 0.5dB type
• CMRR: 60dB
• Surge Protection: 4KV
• ESD Protection: 8KV
• Impedance: BNC: 75Ω, RJ45: 100Ω
• Working Temperature: -10℃ to +70℃
• Storage Temperature: -30℃ to +70℃
• Humidity: 0 to 95%
• Dimensions: 105mm x 58mm x 29mm (excluding connectors)

Required Cable Specifications:

• Type: Unshielded Cat-5 or above twisted-pair wire (Note: Use standard Cat-5 or above twisted-pair wire. Cable quality directly affects image quality and transmission distance.)
• Characteristic Impedance: 100Ω ±20Ω
• DC Loop Resistance: 18Ω/100m
• Differential Capacitance: 62pF/m (Maximum)

Connection Method:

• Clamp modular plugs onto a Cat-5 unshielded twisted-pair wire according to the TIA/EIA-568B connection standard. Refer to the provided diagram for details

Applications:

• HD video surveillance systems
• Video conferencing installations
• Remote video monitoring
• ndustrial video applications

Package Contents:

• 1 x 4-Channel HD Video Balun
