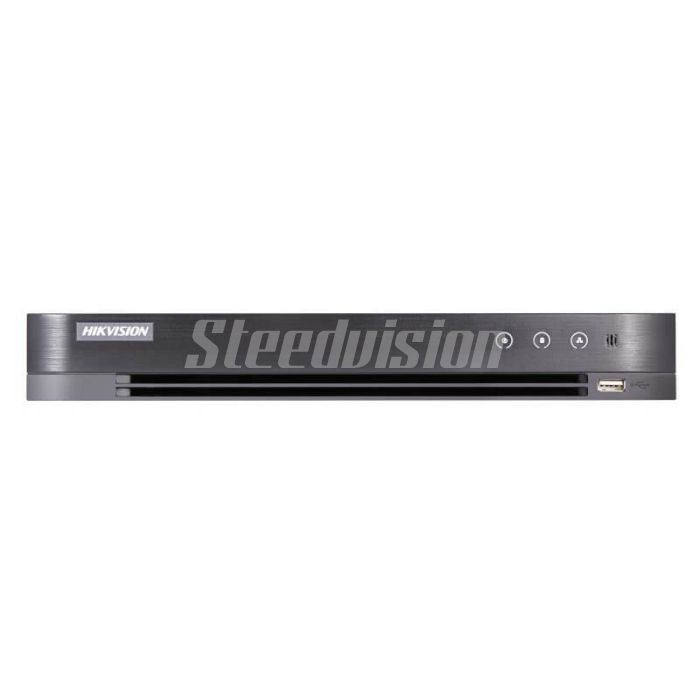

Hikvision DS-7204HQHI-K1 4-Channel 1080p H.265 1U DVR

Overview

The Hikvision DS-7204HQHI-K1 is a high-performance 4-channel 1080p DVR with H.265 compression, providing efficient storage and reliable video surveillance. Ideal for home and business security.

Specifications

Video and Audio
IP video input○ 2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input○ 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD input○ 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input○ 1080p25, 1080p30, 720p25, 720p30
CVBS input○ PAL/NTSC
Audio input○ 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output○ 1-ch, RCA (Linear, 1 KΩ)
Two-way audio○ 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback○ 4-ch
HDTVI input○ 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
VGA/HDMI output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS output○ 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Recording
Video compression○ H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution○ When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
Frame rate○ Main stream:
○ When 1080p Lite mode not enabled: ,
○ For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,
○ For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), ○ For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),
○ When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),
○ Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
○ Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
Video bit rate○ 32 Kbps to 6 Mbps
Dual stream○ Support
Stream type○ Video, Video & Audio
Audio compression○ G.711u
Audio bit rate○ 64 Kbps

Network
Remote connections○ 32
Network protocols○ TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface○ 1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface
SATA○ 1 SATA interface
Capacity○ Up to 10 TB capacity for each disk
Alarm in/out○ N/A
USB interface○ 2 × USB 2.0
Serial interface○ RS-485 (half-duplex)

General
Power supply○ 12 VDC
Working temperature○ -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity○ 10% to 90%
Dimensions (W × D × H)○ 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weights (without HDD)○ ≤ 1.16 kg (2.6 lb)
Consumption (without HDD)○ ≤ 6 W

*There may be multiple versions of the same model product, and there may be differences between different versions of products. We will try its best to provide accurate information in this document, but does not guarantee that the content of this document does not contain technical errors or input, display and other errors. Please refer to the actual product, and it is recommended that you consult in detail about the specific model and version you want to purchase before purchasing. We reserves the right to modify this document without prior notice.

Video and Audio

IP video input

○ 2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Analog video input

○ 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

AHD input

○ 4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI input

○ 1080p25, 1080p30, 720p25, 720p30

CVBS input

○ PAL/NTSC

Audio input

○ 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio output

○ 1-ch, RCA (Linear, 1 KΩ)

Two-way audio

○ 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

○ 4-ch

HDTVI input

○ 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.

VGA/HDMI output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

CVBS output

○ 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Recording

Video compression

○ H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding resolution

○ When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,

Frame rate

○ Main stream:
○ When 1080p Lite mode not enabled: ,
○ For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,
○ For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), ○ For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),
○ When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),
○ Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
○ Sub-stream: ,WD1/4CIF/12fps; CIF/25fps (P)/30fps (N),

Video bit rate

○ 32 Kbps to 6 Mbps

Dual stream

○ Support

Stream type

○ Video, Video & Audio

Audio compression

○ G.711u

Audio bit rate

○ 64 Kbps

Network

Remote connections

○ 32

Network protocols

○ TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network interface

○ 1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

SATA

○ 1 SATA interface

Capacity

○ Up to 10 TB capacity for each disk

Alarm in/out

○ N/A

USB interface

○ 2 × USB 2.0

Serial interface

○ RS-485 (half-duplex)

General

Power supply

○ 12 VDC

Working temperature

○ -10 °C to +55 °C (+14 °F to +131 °F)

Working humidity

○ 10% to 90%

Dimensions (W × D × H)

○ 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

Weights (without HDD)

○ ≤ 1.16 kg (2.6 lb)

Consumption (without HDD)

○ ≤ 6 W

*There may be multiple versions of the same model product, and there may be differences between different versions of products. We will try its best to provide accurate information in this document, but does not guarantee that the content of this document does not contain technical errors or input, display and other errors. Please refer to the actual product, and it is recommended that you consult in detail about the specific model and version you want to purchase before purchasing. We reserves the right to modify this document without prior notice.

More Information

More Information
Video and Audio	IP video input ○2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog video input ○4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection AHD input ○4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI input ○1080p25, 1080p30, 720p25, 720p30 CVBS input ○PAL/NTSC Audio input ○1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio output ○1-ch, RCA (Linear, 1 KΩ) Two-way audio ○1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous playback ○4-ch HDTVI input ○4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1., ○VGA/HDMI output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz CVBS output* ○1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Recording	Video compression ○H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding resolution ○When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF, Frame rate ○Main stream:, ○When 1080p Lite mode not enabled: , ○For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) , ○For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), ○When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), ○Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N), ○Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N), Video bit rate ○32 Kbps to 6 Mbps Dual stream ○Support Stream type ○Video, Video & Audio Audio compression ○G.711u Audio bit rate ○64 Kbps
Network	Remote connections ○32 Network protocols ○TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Network interface ○1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface	SATA ○1 SATA interface Capacity ○Up to 10 TB capacity for each disk Alarm in/out ○N/A USB interface ○2 × USB 2.0 Serial interface ○RS-485 (half-duplex)
General	Power supply ○12 VDC Working temperature ○-10 °C to +55 °C (+14 °F to +131 °F) Working humidity ○10% to 90% Dimensions (W × D × H) ○315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) Weights (without HDD) ○≤ 1.16 kg (2.6 lb) Consumption (without HDD) ○≤ 6 W
