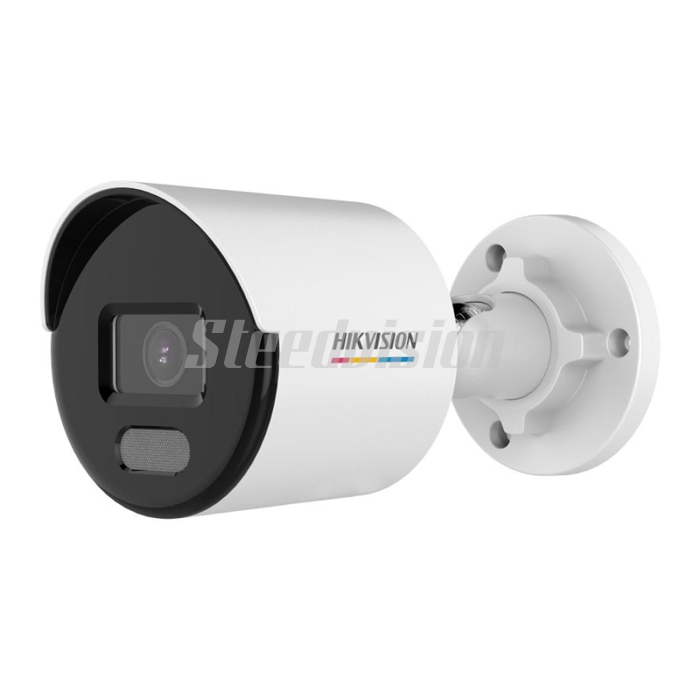

Hikvision Network Camera DS-2CD1047G2-LUF 4MP 4mm POE Built-In Microphone ColorVu MD 2.0 Fixed Bullet Network Camera

$89.00
In stock
SKU
DS-2CD1047G2-LUF

Key Feature
●High quality imaging with 4 MP resolution
●24/7 colorful imaging
●Support Human and Vehicle Detection
●Water and dust resistant (IP67)
●Clear imaging even with strong back lighting due to 120 dB WDR
●Efficient H.265+ compression technology
●Support on-board storage up to 256GB (SD card slot)
●Built-in microphone for real-time audio security

More Information

More Information
Camera

●Image Sensor: 1/3" Progressive Scan CMOS
●Max. Resolution: 2560 × 1440
●Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
●Shutter Time: 1/3 s to 1/100,000 s
●Day & Night: 24/7 color imaging
●Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

●Lens Type: Fixed focal lens, 2.8 and 4 mm optional
●Focal Length & FOV:
○2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
○4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°
●Lens Mount: M12
●Iris Type: Fixed
●Aperture: F1.0
●Depth Of Field:
○2.8 mm: 2 m to ∞
○4 mm: 2.7 m to ∞

DORI

●DORI:
○2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m
○4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

Image Parameters

●Wide Dynamic Range (WDR): 120 dB
●SNR: ≥ 52 dB
●Day/Night Switch: Day,Night,Auto,Schedule
●Image Enhancement: BLC,HLC,3D DNR
●Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
●Privacy Mask: 4 programmable polygon privacy masks

Illuminator

●Supplement Light Type: White Light
●Supplement Light Range: Up to 30 m
●Smart Supplement Light: Yes

Video

●Main Stream:
○50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
○60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
●Sub-Stream:
○50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
○60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
●Video Compression:
○Main stream: H.265+/H.265/H.264+/H.264,
○Sub-stream: H.265/H.264/MJPEG
●Video Bit Rate: 32 Kbps to 8 Mbps
●H.264 Type: Baseline Profile,Main Profile,High Profile
●H.265 Type: Main Profile
●Bit Rate Control: CBR,VBR
●Region Of Interest (ROI): 1 fixed region(s) for main stream

Audio

●Audio Type: Mono sound
●Environment Noise Filtering: Yes
●Audio Sampling Rate: 8 kHz/16 kHz
●Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
●Audio Bit Rate: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

●Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
●Simultaneous Live View: Up to 6 channels
●API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
●User/Host
○Up to 32 users:
○3 user levels: administrator, operator, and user
●Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
●Client: iVMS-4200,Hik-Connect
●Web Browser:
○Plug-in required live view: IE 10, IE 11,
○Local service: Chrome 57.0+, Firefox 52.0+

Event

●Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
●Linkage: Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

Interface

●Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
●On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
●Built-In Microphone: Yes
●Reset Key: Yes

General

●Power:
○12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,
○PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
●Material: Aluminum alloy body
●Dimension: Ø76.6 mm × 164.4 mm (Ø3 × 6.5\")"
●Package Dimension: 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
●Weight: Approx. 430 g (0.9 lb.)
●With Package Weight: Approx. 650 g (1.4 lb.)
●Storage Conditions
: 30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
●Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
●Language: English, Ukrainian
●General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval

●EMC:
○FCC: 47 CFR Part 15, Subpart B,
○CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
○RCM: AS/NZS CISPR 32: 2015,
○KC: KN32: 2015, KN35: 2015
●Safety:
○UL: UL 62368-1,
○CB: IEC 62368-1: 2014+A11,
○CE-LVD: EN 62368-1: 2014/A11: 2017,
○BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
●Environment:
○CE-RoHS: 2011/65/EU,
○WEEE: 2012/19/EU,
○Reach: Regulation (EC) No 1907/2006
●Protection: IP67: IEC 60529-2013
