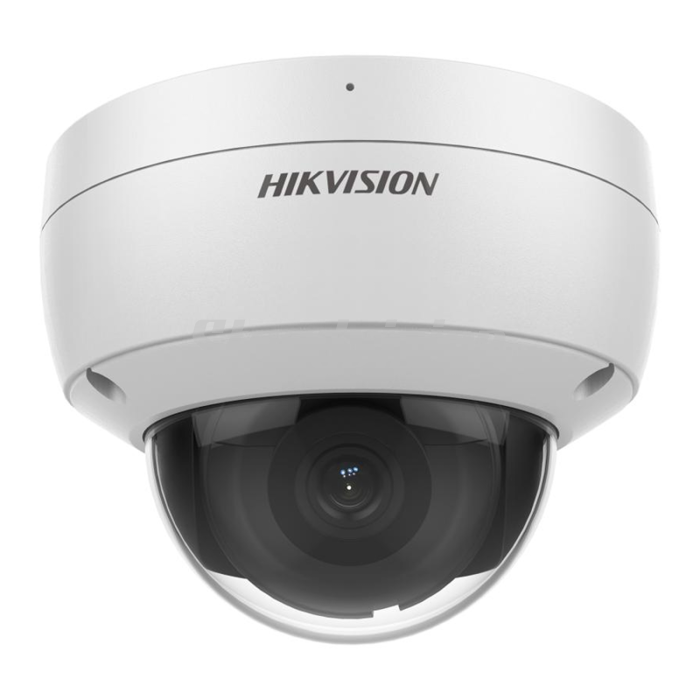

| Camera |
●Image Sensor: 1/2.8" Progressive Scan CMOS
●Max. Resolution: 3840 × 2160
●Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
●Shutter Time: 1/3 s to 1/100,000 s
●Day & Night: IR cut filter
●Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
| Lens |
●Lens Type: Fixed focal lens, 2.8 and 4 mm optional
●Focal Length & FOV:
○2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
○4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
●Lens Mount: M12
●Iris Type: Fixed
●Aperture: F1.6 |
| DORI |
●DORI:
○2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m
○4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m |
| Image Parameters |
●Image Parameters Switch: Yes
●Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
●Day/Night Switch: Day,Night,Auto,Schedule
●Wide Dynamic Range (WDR): 120 dB
●SNR: ≥ 52 dB
●Image Enhancement: BLC,HLC,3D DNR
●Privacy Mask: 4 programmable polygon privacy masks |
| Illuminator |
●Supplement Light Type: IR
●Supplement Light Range: Up to 30 m
●Smart Supplement Light: Yes
●IR Wavelength: 850 nm |
| Video |
●Main Stream:
○50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720);
○60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
●Sub-Stream
○50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
○60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
●Third Stream
○50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
○60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
*Third stream is supported under certain settings.
●Video Bit Rate: 32 Kbps to 16 Mbps
●H.264 Type: Baseline Profile,Main Profile,High Profile
●H.265 Type: Main Profile
●Bit Rate Control: CBR,VBR
●Scalable Video Coding (SVC): H.264 and H.265 encoding
●Video Compression:
○Main stream: H.265+/H.265/H.264+/H.264,
○Sub-stream: H.265/H.264/MJPEG,
○Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
●Region Of Interest (ROI): 1 fixed region(s) for main stream and sub-stream |
| Audio |
●Audio Type: Mono sound
●Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
●Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC)
●Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
●Environment Noise Filtering: Yes |
| Network |
●Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
●Simultaneous Live View: Up to 6 channels
●API: Open Network Video Interface (Profile S, Profile G),ISAPI,SDK
●User/Host:
○Up to 32 users
○3 user levels: administrator, operator, and user
●Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
●Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
●Client: iVMS-4200,Hik-Connect,Hik-Central
●Web Browser:
○Plug-in required live view: IE 10, IE 11,
○Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
○Local service: Chrome 57.0+, Firefox 52.0+ |
| Event |
●Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
●Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection
●Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
| Interface |
●Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
●On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
●Built-In Microphone: Yes
●Reset Key: Yes |
| General |
●Power:
○12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
○PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
●Dimension: Ø121.4 mm × 92.2 mm (Ø4.8 × 3.6\")"
●Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
●Weight: Approx. 550 g (1.2 lb.)
●With Package Weight: Approx. 800 g (1.8 lb.)
●Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
●Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
●Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
●General Function: Heartbeat,anti-flicker,password reset via email,pixel counter |
| Approval |
●EMC:
○FCC: 47 CFR Part 15, Subpart B,
○CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
○RCM: AS/NZS CISPR 32: 2015,
○IC: ICES-003: Issue 7,
○KC: KN32: 2015, KN35: 2015
●Environment:
○CE-RoHS: 2011/65/EU,
○WEEE: 2012/19/EU,
○Reach: Regulation (EC) No 1907/2006
●Protection: IP67: IEC 60529-2013;IK10: IEC 62262:2002
●Safety:
○UL: UL 62368-1,
○CB: IEC 62368-1: 2014+A11,
○CE-LVD: EN 62368-1: 2014/A11: 2017,
○BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
