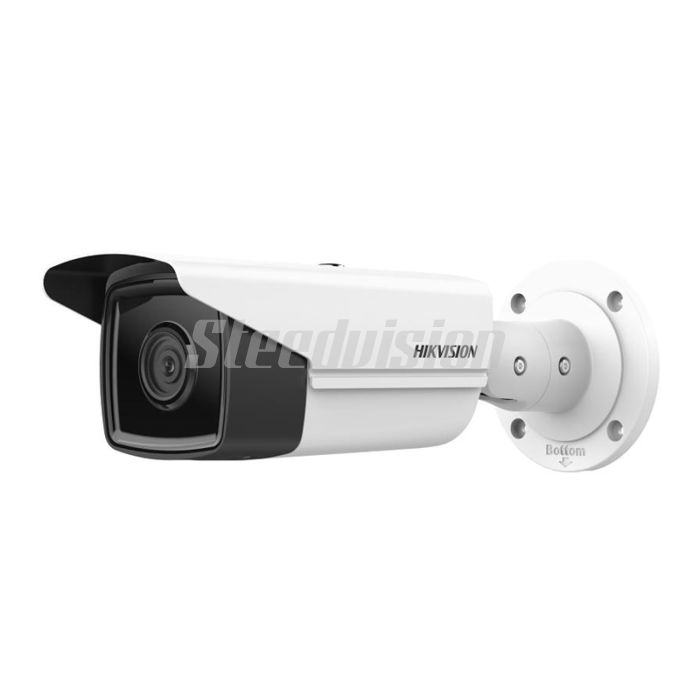

| Camera |
●Image Sensor: 1/3″ Progressive Scan CMOS
●Max. Resolution: 2688 × 1520
●Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
●Shutter Time: 1/3 s to 1/100,000 s
●Day & Night: ICR Cut
●Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens |
●Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
●Focal Length & FOV:
○2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
○4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
○6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
●Lens Mount: M12
●Iris Type: Fixed
●Aperture: F1.6 |
| DORI |
●DORI:
○2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
○4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
○6 mm: D: 120 m, O: 47 m, R: 24 m, I: 12 m |
| Image Parameters |
●Image Parameters Switch: Yes
●Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
●Day/Night Switch: Day, Night, Auto, Schedule
●Wide Dynamic Range (WDR): 120 dB
●SNR: ≥ 52 dB
●Image Enhancement: BLC, HLC, 3D DNR |
| Illuminator |
●Supplement Light Type: IR
●Supplement Light Range: -2I: up to 60 m
●Smart Supplement Light: Yes
●IR Wavelength: 850 nm |
| Video |
●Main Stream:
○50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
○60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
●Sub-Stream:
○50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
○60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
●Third Stream:
○50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
○60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
●Video Compression:
○Main stream: H.265/H.264/H.264+/H.265+
○Sub-stream: H.265/H.264/MJPEG
○Third stream: H.265/H.264
●Video Bit Rate: 32 Kbps to 8 Mbps
●H.264 Type: Baseline Profile/Main Profile/High Profile
●H.265 Type: Main Profile
●Bit Rate Control: CBR/VBR
●Scalable Video Coding (SVC): Yes
●Region Of Interest (ROI): 1 fixed region for main stream and sub-stream |
| Network |
●Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
●Simultaneous Live View: Up to 6 channels
●API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
●User/Host: Up to 32 users. 3 user levels: administrator, operator and user
●Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
●Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
●Client: iVMS-4200, Hik-Connect, Hik-Central
●Web Browser
○Plug-in required live view: IE 10, IE 11
○Plug-in free live view : Chrome 57.0+, Firefox 52.0+
○Local service: Chrome 57.0+, Firefox 52.0+ |
| Event |
●Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
●Smart Event:
○Line crossing detection, intrusion detection
○Supports human and vehicle targets classification
○Face detection
●Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, sned email |
| Interface |
●Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
●On-Board Storage: Built-in microSD, up to 512 GB
●Reset Key: Yes |
| General |
●Power:
○12 VDC ± 25%, 0.71 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
○PoE: 802.3af, 36 V to 57 V, 0.27 A to 0.17 A, max. 9.5 W
●Material:
○Aluminum alloy body
○Sun shield, IR cover: plastic
●Dimension: Ø105 × 299.7 mm (Ø4.1″ × 11.8″)
●Package Dimension: 386 × 156 × 155 mm (15.2" × 6.2" × 6.2")
●Weight: Approx. 1070 g (2.4 lb.)
●With Package Weight: Approx. 1589 g (3.5 lb.)
●Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
●Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
●Language: 33 languages,English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
●General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter |
| Approval |
●EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
●Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
●Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
●Protection: IP67 (IEC 60529-2013) |
