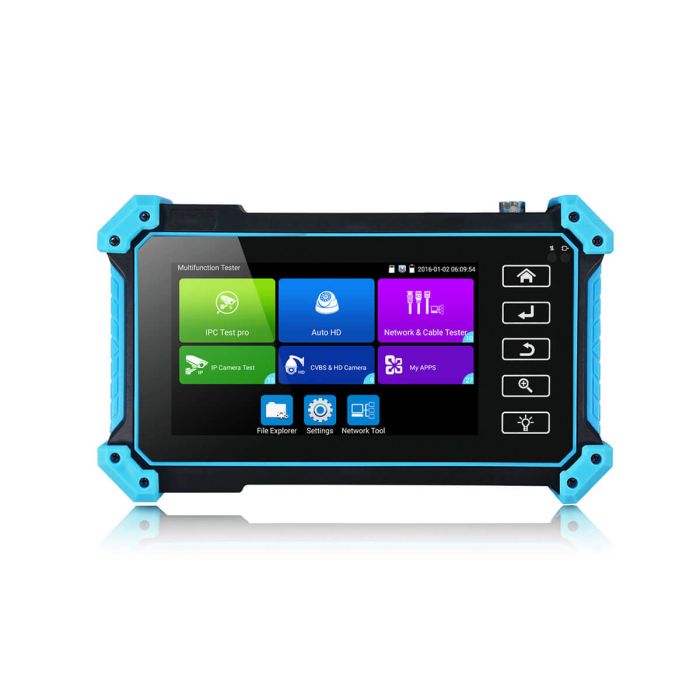

Steedvision IPC-5100 Plus 4K Security Camera Tester

Special Price $259.00 Regular Price $359.00

In stock

SKU

IPC-5100-PLUS

Key Feature
●5 inch IPS touch screen
●Max 12MP 4K IP camera testing
●Max 8MP TVI camera testing
●Max 8MP CVI camera testing
●Max 8MP AHD camera testing
●PoE power output
●Built in Wi-Fi
●HDMI input / VGA input
●Cable tracer*(Optional)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The IPC-5100 Plus is a versatile 5-inch Android-based CCTV and IP camera tester designed for professional use. Equipped with a powerful 4-core CPU, 1GB RAM, and 8GB ROM, it supports 12MP 4K IP camera tests, advanced H.265/H.264 decoding, and comprehensive compatibility with leading camera brands like HIKVISION, DAHUA, and Axis. Features include HDMI/VGA video input, TDR cable testing, PoE power output, and built-in Wi-Fi. The compact design ensures convenience, while its multi-functional tools enhance efficiency in troubleshooting and camera installation.

A digital cable tracer is available as an option.

Note:
Please remember to remove the battery insulation film before use.
If you need any assistance, please contact customer service.

	IPC-5100 Plus	IPC-5200 Plus
IP camera test	✓	✓
CVBS camera test	✓	✓
AHD camera test	✓	✓
CVI camera test	✓	✓
TVI camera test	✓	✓
SDI camera test		✓
PTZ control	✓	✓
HDMI input	✓	✓
VGA input	✓	✓

More Information

More Information
Brand	Steedvision
Model	IPC-5100 Plus
CPU/RAM/ROM	4core, 1.2GHz/1GB(DDR)/8GB(eMMC)
Operating system	Android
Display	5 inch IPS touch screen, 1920x1080 resolution
Network camera test	12MP 4K, IP camera test, H.265/H.264 ◉IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK ◉Rapid Video: Auto view the video, create testing report ◉For HIKVISION test tool: support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc. ◉For DAHUA test tool: support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name. ◉For Axis test tool amd others brand camera test: After the tester connects to the network, install the dedicated test tool APP of the corresponding brand through online update. Brands that do not have a dedicated test APP can be tested through the test pro tool.
CCTV camera test	HD Coaxial test ◉8MP TVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu ◉8MP CVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu ◉8MP AHD camera test: 3840 x 2160P 15FPS, UTC control / call OSD menu ◉SDI camera can't be supported ◉Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu CVBS camera test ◉1 channel BNC input, NTSC/PAL (Auto adapt) ◉PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
Video input	HDMI input: 1 ch HDMI input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/ 1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc VGA input: 1 ch VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS / (1600x1200P/900P 60FPS) / 1440x900P 60FPS / 1360x768P 60FPS / (1280x1024/960/800/768/720P 60FPS) / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS.
Power output	◉DC output: DC12V/3A power output, supply temporarily power for the camera ◉POE output: Standard IEEE802.3af/at PoE power output, DC48V, max 25.5W
TDR cable test	◉UTP cable test: Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head. ◉RJ45 TDR cable test: Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M.
Network funtion	Built in Wi-Fi, speeds 150M, Only support 2.4GHz. display wireless camera image, create WIFI hotspot.
Audio test	1 channel audio signal input, test whether sound normal.
Other funtion	◉Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back ◉Tester Play: Screen projection: Tester, mobile phone and PC display at the same time (only for android version mobile phone) ◉Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test ◉Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal. ◉TF card: Suport up to 32GB, item not include TF card ◉Auto off: 1 to 30 (mins)
Power supply	DC 12V/1A
Battery	Built-in 7.4V Lithium polymer battery, 3350mAh, 24.79W/h. After charging 3-4 hours, normal working time 5-8 hours
Language	English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc
Working environment	◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉) ◉Working Humidity: 30% to 90%
Dimension/Weight	◉Tester:183x110x36.5mm(7.2x4.33x1.44inch) / 0.4kg(0.88lb) ◉Package Dimension: 260x143x100mm(10.24x5.63x3.94inch) / 1.05kg(2.31lbs)
Package included	1 x Tester 1 x Tool box 1 x Power adapter 1 x Cable test box 1 x Power output cable 1 x BNC video cable 1 x RS485 cable 1 x Audio Test cable 1 x Shoulder Strap 1 x Wristband
