| Brand |
Steedvision |
| Model |

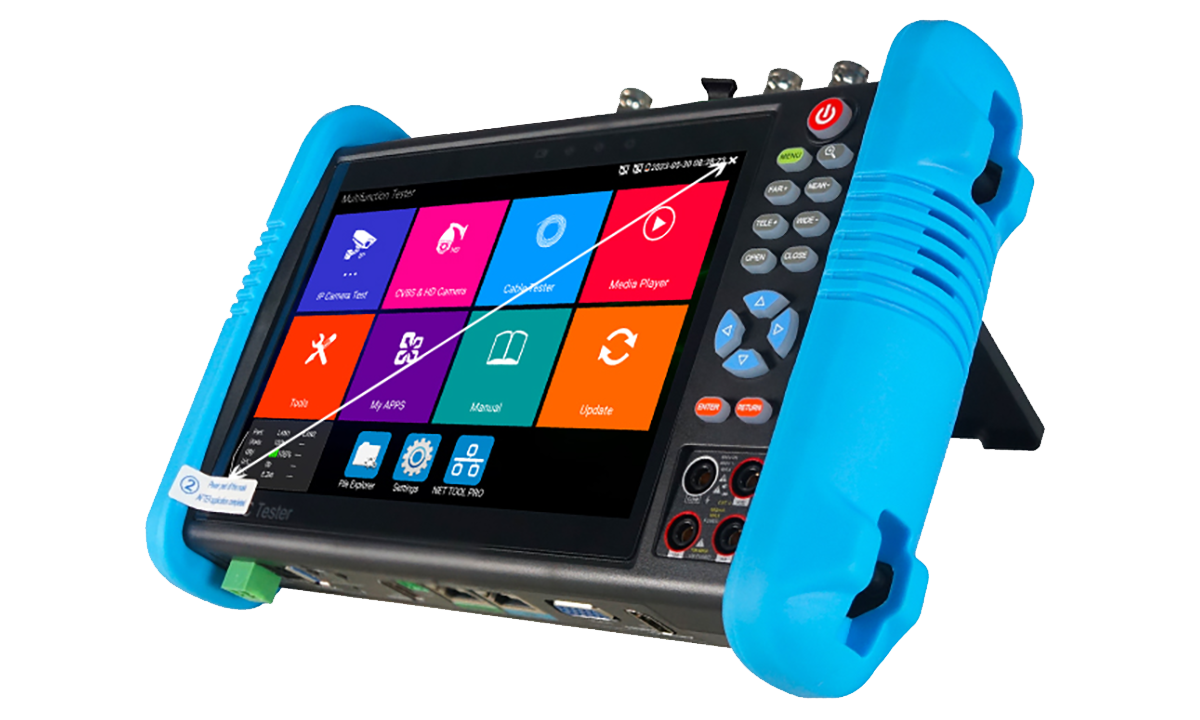

IPC-9800CMADHS Pro |
| CPU/RAM/ROM |
4-core 2.0GHz/1GB(DDR)/8GB(EMMC) |
| Operating system |
Android 11.0 |
| Display |

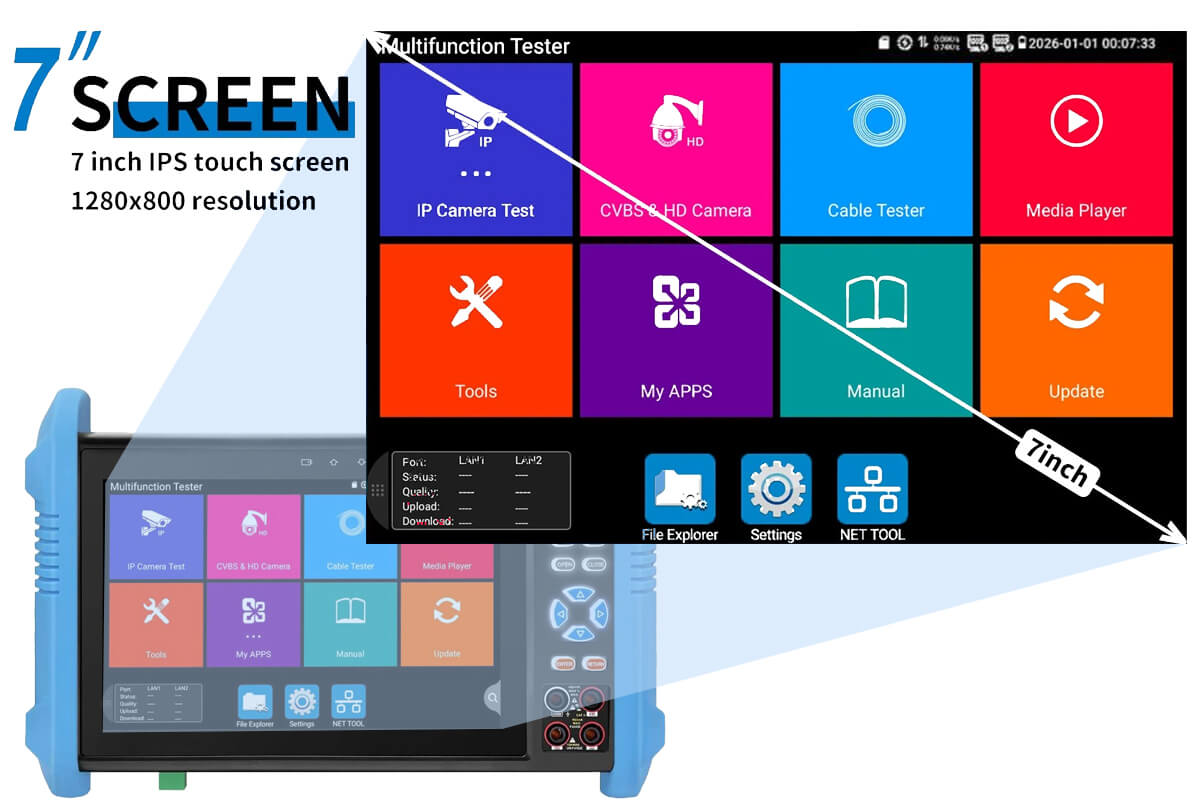

7 inch IPS touch screen, 1280*800 resolution, Backlit buttons |
| Network camera test |

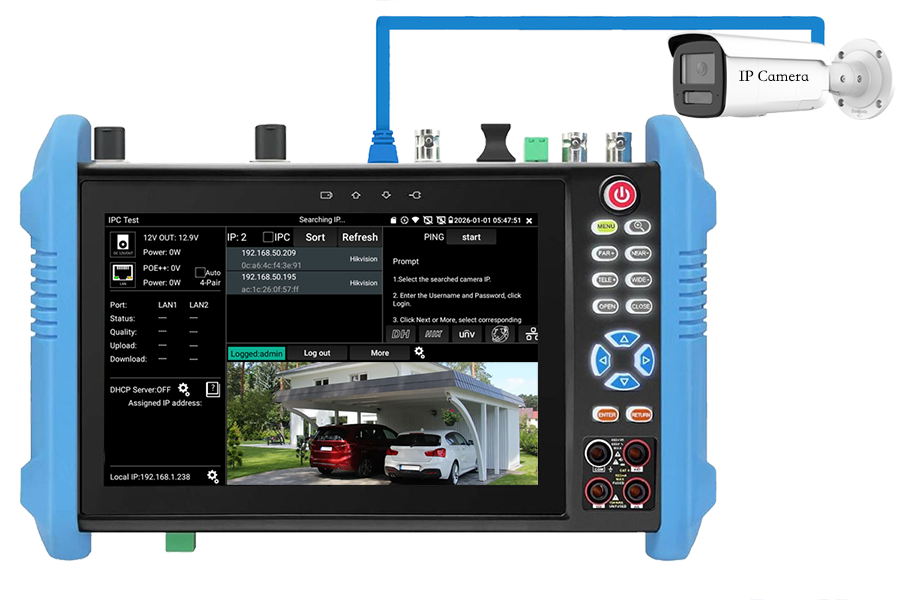

IP camera test Max 8K 32MP
◉IP Discovery/ONVIF/IPC test /RTSP play /Client APK
◉Rapid Video, Auto view the video, create testing report
◉Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
◉Dahua test tool, Dahua camera test, modify the user name, password and IP parameters
◉IP & CVBS test at the same time, converter test from analog to digital with dual test window |
| CCTV camera test |
CVBS
◉1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
◉Analog video level meter, peak video signal level, SYNC signal level, CVBS color bar chroma level measurement

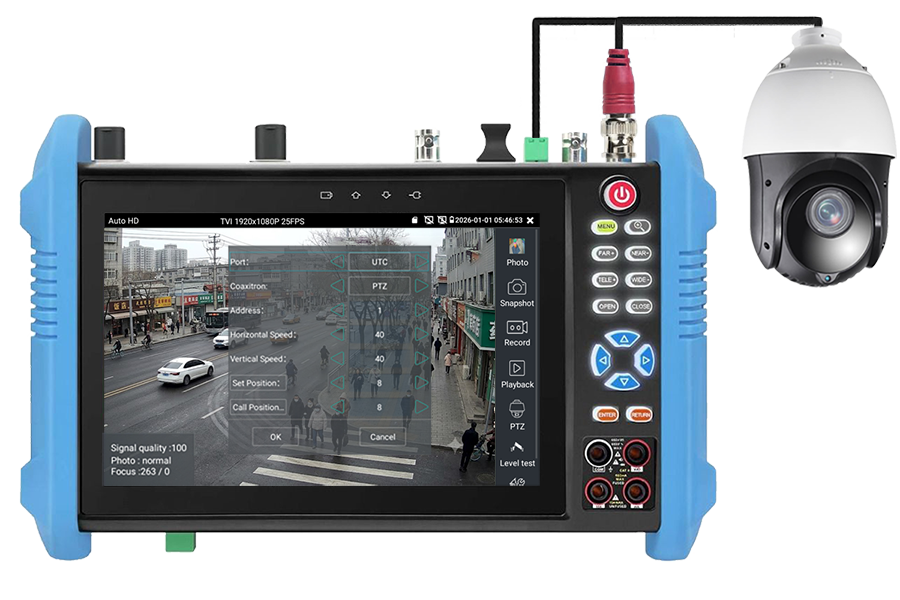

◉PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
◉CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable

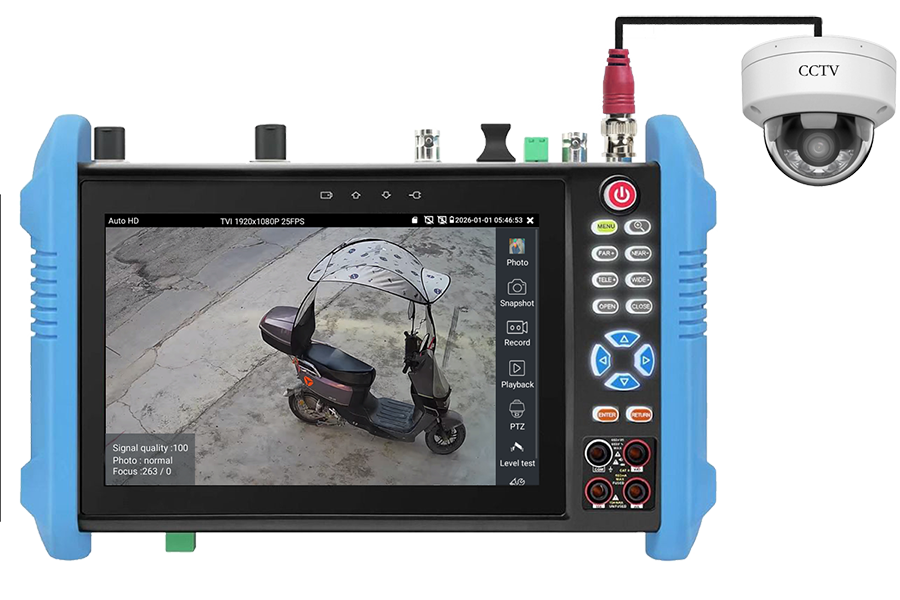

Coaxial HD test
◉8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio
◉8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu
◉8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu
◉8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu |

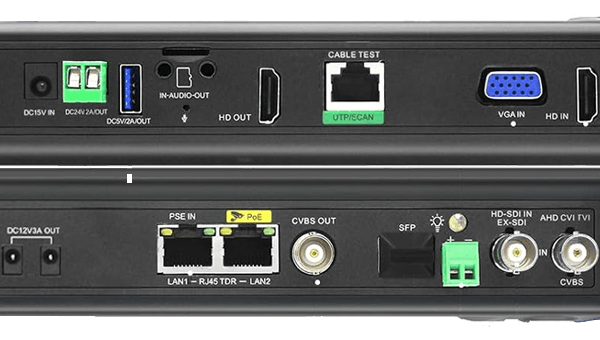

| Video input |
◉VGA input: 1 channel VGA input, support 1920x1080P 60fps
◉HDMI input: 1 channel HDMI input, support 4K 3840x2160P 30fps |
| Video output |
◉HDMI output: 1 channel HDMI output, support 4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details)
◉Analog Video out: color bar generator：Output one channel PAL/NTSC color bar video signal for testing monitor or video cable |

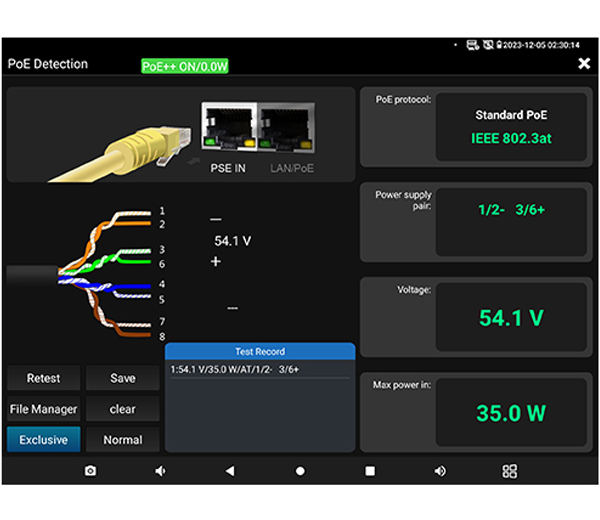

| Power output |
◉USB DC5V/2A power output, as a power bank
◉DC12V/3A power output ,supply temporarily power for the camera
◉DC24V/2A power output ,supply temporarily power for the speed dome camera
◉Standard PoE power output, DC48V, max power 25.5W |
| Cable test |

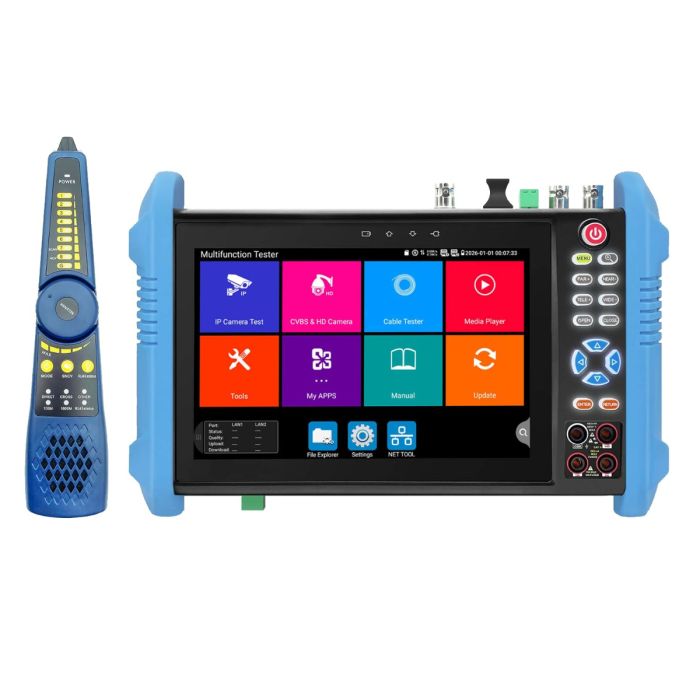

◉Cable tracer(Wire Finder)：Contains a digital cable tracer. search BNC cable, network cable and telephone cable from the mess cables.
◉Support AC voltage detector. voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE
◉UTP cable test：Test UTP cable connection status and display on the screen. Read the number on the screen
◉RJ45 TDR cable test：Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. |
| Digital Multimeter(DMM) |

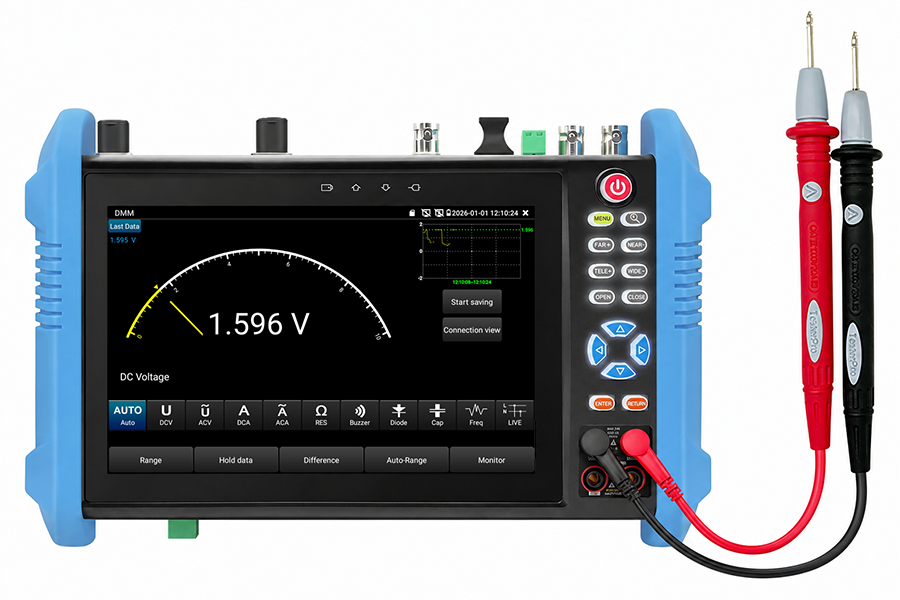

DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement
DC&AC voltage measurement(V): the highest range is 660V, the accuracy is ±0.3%+4(DC)/±0.8%+6(AC), resolution is 100mV; DC&AC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA; Resistance measurement(Ω): the highest range is 66MΩ, the accuracy is ±(1.2%+2), the resolution is 10KΩ,the Lowest range is 660Ω, the accuracy is ±(0.8%+5), the resolution is 0.1Ω; capacitance measurement(F):the highest range is 66mF, the accuracy is ±(5%+8), the resolution is 10uF,
the Lowest range is 6.6nF, the accuracy is ±(0.5%+20), the resolution is 1pF; Diode measurement;At the same time, the tester's multimeter can continuity testing. Automatically adjust 0. |
| Optical power meter(OPM) |
N/A |
| Visual fault locator(VFL) |
N/A |
| Video level test |
N/A |
| TDR cable test |
N/A |
| Network funtion |

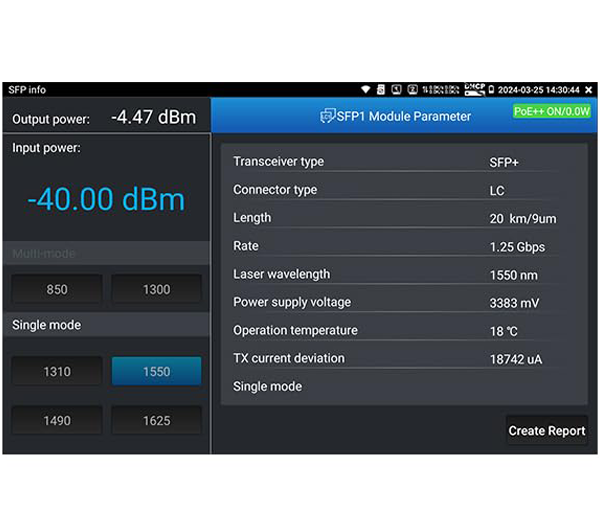

Network interface: RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive
Wi-Fi: Built in WIFI, 2.4GHz, speeds150Mbps
Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test |
| Audio test |
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| Other funtion |
◉Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
◉Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal
◉Power management: View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input.
◉Drop-down menu: You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface
◉Tester Play: screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone) |
| Power supply |
DC12V/2A |
| Battery |
Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh
After charging 3 to 4hours, normal working time 15 hours |
| Language |
English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc. |
| Working environment |
◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉)
◉Working Humidity: 30% to 90% |
| Dimension/Weight |
◉Tester: 240x135x35mm(9.4x5.3x1.4inch) / 1020g(2.25lbs)
◉Package: 320x290x100mm(12.6x11.4x3.94) / 2330g(5.14lbs) |
| Package included |
1 x Camera tester
1 x Tool Bag
1 x Power adapter
3 x Shoulder Strap
1 x Wire Finder
1 x Power output cable
1 x BNC video cable
1 x RS485 control cab
2 x Multimeter Test cable
1 x Audio test cable
1 x Power output cable |
