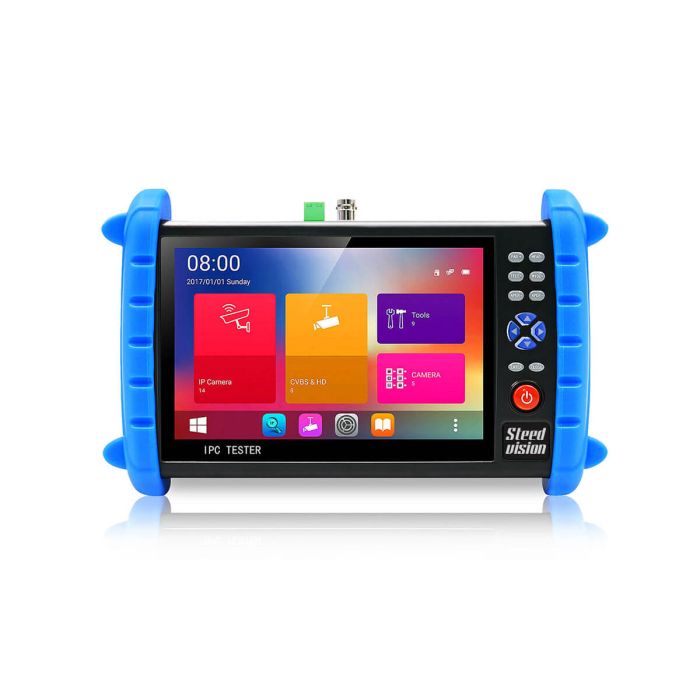

Steedvision IPCXS-U 4K Security Camera Tester
Key Feature
●7 inch IPS touch screen
●Max 4K IP camera testing
●CVBS camera testing
●PoE power output / USB power output
●Built in Wi-Fi
●HDMI output
●Cable tracer*(Optional)
The Steedvision IPCXS-U is a powerful 7-inch Android 7.1-based camera tester designed for professionals in IP and CCTV camera installation. With a high-resolution 1920x1200 IPS touch screen, it supports 4K IP camera testing, H.265/H.264 decoding, and compatibility with popular brands like Hikvision, Dahua, and Axis. The device features dual Gigabit Ethernet ports, PoE output, HDMI video output, TDR cable testing, and advanced network diagnostic tools. Its robust battery provides up to 10 hours of operation, making it an essential tool for efficient and reliable camera setup.
Specifications
- General
- BrandSteedvision
- ModelIPCXS-U
- Operating systemAndroid 7.1
- Display7 inch IPS touch screen, 1920*1200 resolution
- LanguageChinese(simplified), Chinese(traditional), English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese etc.
- Working Temperature-10℃ to +50℃ (14℉ to 122℉)
- Working Humidity30% to 90%
- Dimension/Weight250x160x50mm / 950g (9.84x6.3x1.97inch / 2.09lbs)
- IP camera test
- IP camera testIP camera test, 4K/H.265/H.264
Smart IPC/IP Discovery/Rapid ONVIF/One-click video/RTSP play /Client APK
Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
Dahua test tool, Dahua camera test, modify the user name, password and IP parameters
Built-in multiple test APPs for other brands of cameras, such as for AXIS, Samsung, TP-LINK, EZVIZ etc.
- Coaxial camera test
- CVBS1 channel BNC input, NTSC/PAL (Auto adapt)
- Video output
- HDMI output1 channel HDMI output. Support 1920x1080P 60fps
- Power output
- DC5V/2AUSB DC5V/2A power output, as a power bank
- DC12V/3ADC12V/3A power output, supply temporarily power for the camera
- DC24V/1ADC24V/1A power output, supply temporarily power for the speed dome camera
- PoEIEEE802.3af/at 48V PoE power output, max power 25.5W
- Digital Multimeter(DMM)
- N/AThis feature requires a higher-end model.
- Optical Power Meter(OPM)
- N/AThis feature requires a higher-end model.
- Visual Fault Locator(VFL)
- N/AThis feature requires a higher-end model.
- Video Level Test
- N/AThis feature requires a higher-end model.
- TDR Cable Test
- UTP cable testTest UTP cable connection status and display on the screen. Read the number on the screen
- RJ45 TDR cable testTest cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M.
- Network
- Network interfaceRJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive
- Wi-FiBuilt in WIFI, 2.4GHz, speeds150Mbps
- Network testTrace route, Link monitor, DHCP server, port flashing, Ping test, Scan, IP tools, Network loop, Bandwidth test, Search vendor, WiFi analysis
- IP toolsGraphical display of used and unused IP addresses within the LAN
- Audio Test
- Audio signal input1 channel audio signal input, test whether sound normal
- Other Function
- RS485 serial toolCan accept, send and analyzes the RS485 command data from controlling device, also can send hexadecimal
- PoE testMeasurement POE switch or PSE power supply voltage and cable connection status
- Drop-down menuYou can select User manual, CVBS floating window, APP store, File Explorer, Screenshot, LED light switch, Memory card, Brightness adjustment, Volume adjustment, quick access to custom APP etc in any interface
- Dual test windowIP& CVBS test at the same time, converter test from analog to digital with dual test window
- ProjectionTester, mobile phone and PC display at the same time (only for android mobile phone)
- Battery
- TypeBuilt-in 7.4V Lithium polymer battery,7800mAh, 57.72Wh
- Charging timeAfter charging 4 to 6 hours
- Working timeNormal working time 6 to 10 hours
- Package Included
- Items1 x Camera tester
1 x Tool Bag
1 x Power adapter
1 x Shoulder Strap
1 x TDR test cable
1 x Power output cable
1 x BNC video cable
1 x RS485 control cab
IPCXS Series Feature Comparison
IPCXS-U | IPCXS-ACHITU | IPCXS-ACHIMNORTUV | |
---|---|---|---|
IP camera test | ✓ | ✓ | ✓ |
CVBS camera test | ✓ | ✓ | ✓ |
AHD camera test | ✗ | ✓ | ✓ |
CVI camera test | ✗ | ✓ | ✓ |
TVI camera test | ✗ | ✓ | ✓ |
SDI camera test | ✗ | ✓ | ✓ |
PTZ control | ✓ | ✓ | ✓ |
HDMI intput | ✗ | ✓ | ✓ |
HDMI output | ✓ | ✓ | ✓ |
Digital Multi-meter | ✗ | ✗ | ✓ |
Optical power meter | ✗ | ✗ | ✓ |
Visual fault locator | ✗ | ✗ | ✓ |
TDR Cable | ✗ | ✗ | ✓ |
Buy Now | Buy Now | Buy Now |
Feature Comparison
Brand | Steedvision |
---|---|
Model | IPCXS-U |
Operating system | Android 7.1 |
Display | 7 inch IPS touch screen, 1920*1200 resolution |
Network camera test | IP camera test, 4K/H.265/H.264 |
CCTV camera test | CVBS: 1 channel BNC input, NTSC/PAL (Auto adapt) |
Video output | HDMI output: 1 channel HDMI output. Support 1920x1080P 60fps |
Power output | ◉DC5V/2A: USB DC5V/2A power output, as a power bank |
Digital Multimeter(DMM) | N/A |
Optical power meter(OPM) | N/A |
Visual fault locator(VFL) | N/A |
Video level test | N/A |
TDR cable test | ◉UTP cable test: |
Network funtion | ◉Network interface: RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive |
Audio test | 1 channel audio signal input, test whether sound normal |
Other funtion | ◉RS485 serial tool: Can accept, send and analyzes the RS485 command data from controlling device, also can send hexadecimal |
Power supply | DC 12V/2A |
Battery | Built-in 7.4V Lithium polymer battery,7800mAh, 57.72Wh. After charging 4 to 6 hours, normal working time 6 to 10 hours |
Language | Chinese(simplified), Chinese(traditional), English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese etc. |
Working environment | ◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉) |
Dimension/Weight | 250x160x50mm / 950g (9.84x6.3x1.97inch / 2.09lbs) |
Package included | 1 x Camera tester |
