| Brand |
Steedvision |
| Model |

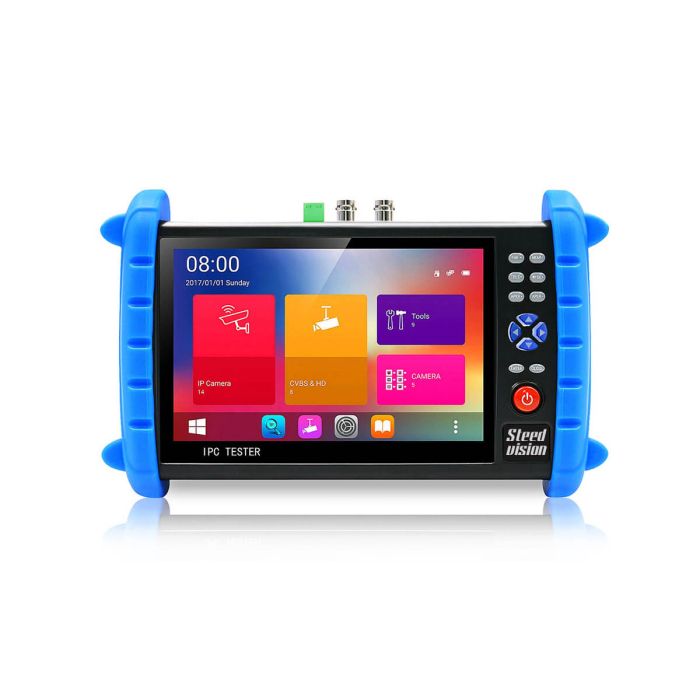

IPCXS-ACHITU |
| Operating system |
Android 7.1 |
| Display |
7 inch IPS touch screen, 1920*1200 resolution |
| Network camera test |
IP camera test, 4K/H.265/H.264
◉Smart IPC/IP Discovery/Rapid ONVIF/One-click video/RTSP play /Client APK
◉Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
◉Dahua test tool, Dahua camera test, modify the user name, password and IP parameters
◉Built-in multiple test APPs for other brands of cameras, such as for AXIS, Samsung, TP-LINK, EZVIZ etc. |
| CCTV camera test |

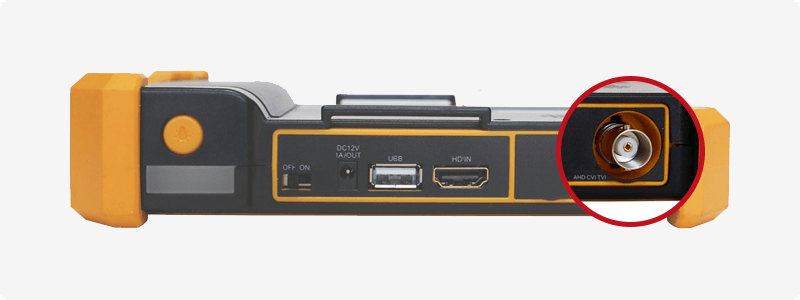

CVBS
◉1 channel BNC input, NTSC/PAL (Auto adapt)
◉PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P,Samsung, Panasonic etc
Coaxial HD test
◉max 8MP TVI camera test, 3840x2160p 15fps, coaxial PTZ & call OSD menu
◉max 8MP CVI camera test, 3840x2160p 12.5/15fps,coaxial PTZ & call OSD menu
◉max 8MP AHD camera test, 3840x2160p 15fps, coaxial PTZ & call OSD menu
◉max 8MP SDI camera test,3840x2160p 25/30fps, coaxial PTZ & call OSD menu
|
| Video input |
◉HDMI: 1 channel HDMI input
Support 4K 3840×2160P 30fps, 1920×1080P 25/30/60fps, 1920×1080i 60fps, 1280×720P 30/60fps, 720×480P 60fps, 720×576P 60fps, 1024×768P 60fps, 1280×1024P 60fps, 1600×1200P 60fps, 1440×900P 60fps, 800×600P 60fps |
| Video output |
HDMI: 1 channel HDMI output, support 1920x1080P 60fps |
| Power output |
◉DC5V/2A: USB DC5V/2A power output, as a power bank
◉DC12V/3A: DC12V/3A power output ,supply temporarily power for the camera
◉DC24V/1A: DC24V/1A power output ,supply temporarily power for the speed dome camera
◉PoE: IEEE802.3af/at 48V PoE power output, max power 25.5W |
| Cable test |
Cable tracer*(Optional function): N/A
(This feature requires additional purchase of a cable tracer.) |
| Digital Multimeter(DMM) |
N/A |
| Optical power meter(OPM) |
N/A |
| Video level test |
N/A |
| TDR cable test |
◉UTP cable test:
Test UTP cable connection status and display on the screen. Read the number on the screen
◉RJ45 TDR cable test:
Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. |
| Network funtion |

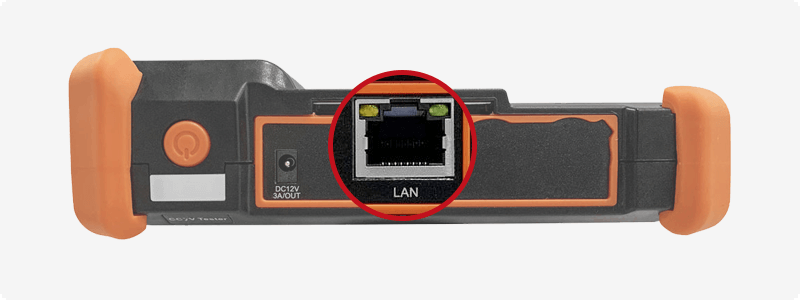

◉Network interface: RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive
◉Wi-Fi: Built in WIFI, 2.4GHz, speeds150Mbps
◉Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test, Scan, IP tools, Network loop, Bandwidth test, Search vendor, WiFi analysis
◉IP tools: Graphical display of used and unused IP addresses within the LAN |
| Audio test |
1 channel audio signal input, test whether sound normal |
| Other funtion |
◉RS485 serial tool: Can accept, send and analyzes the RS485 command data from controlling device, also can send hexadecimal
◉PoE test: Measurement POE switch or PSE power supply voltage and cable connection status
◉Drop-down menu: You can select User manual, CVBS floating window, APP store, File Explorer, Screenshot, LED light switch, Memory card, Brightness adjustment, Volume adjustment, quick access to custom APP etc in any interface
◉Dual test window: IP& CVBS test at the same time, converter test from analog to digital with dual test window
◉Projection: Tester, mobile phone and PC display at the same time (only for android mobile phone) |
| Power supply |
DC 12V/2A |
| Battery |
Built-in 7.4V Lithium polymer battery,7800mAh, 57.72Wh |
| Language |
Chinese(simplified), Chinese(traditional), English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese etc. |
| Working environment |
◉Working Temperature: -10℃ to +50℃ (14℉ to 122℉)
◉Working Humidity: 30% to 90% |
| Dimension/Weight |
250x160x50mm / 970g (9.84x6.3x1.97inch / 2.14lbs) |
| Package included |
1 x Camera tester
1 x Tool Bag
1 x Power adapter
1 x Shoulder Strap
1 x TDR test cable
1 x Power output cable
1 x BNC video cable
1 x RS485 control cable |
