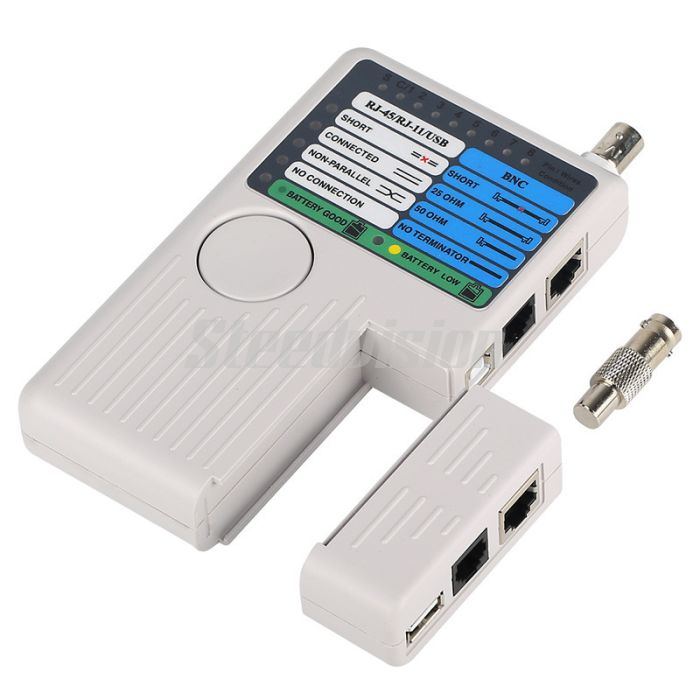

Portable Remote Cable Tester supports BNC/RJ45/RJ11/USB Network Phone Cable
You have 30 days from the date of receipt to return your item.
Receive the product you expect, or we will refund your money.
All orders are shipped quickly to ensure timely delivery.
Our customer service team is here to answer your questions anytime.
Key Feature
●Test 4 types of cables: RJ-45, RJ-11, USB and BNC.
●Ergonomic portable handheld design.
●Simple one button test.
●With a soft leather bag for carrying.
●High quality warranted.
Functional Description
(Master Unit)
①BNC (10BASE-2, 10BASE-5)
②RJ45 (Networking)
③RJ11 (Phone system)
④USB (Type B)
⑤Test buttom
⑥Battery status
⑦No connection stat
⑧Non-equilibrium state
⑨Connection state
⑩Short circuit status
⑪Wire sequence indicator
(Remote module)
⑫ RJ45
⑬RJ11
⑭USB (Type A)
Test 4 types of cables: RJ-45, RJ-11, USB and BNC. Test installed wiring or patch cables.
Tests shielded (STP) or unshielded (UTP) LAN cables.
Test shields in USB cables.
Can test from 2 remote points.
Beeper provides audible annunciation of test results.
Remote unit stores in Main unit.
BNC terminator 25/50 Ohm indications.
Straight or crossover indications.
LEDs indicate connections and faults of wire and pins.
RJ-11/RJ-45 are equipped with 50u gold plating. 300 feet test distance (RJ-45/RJ-11/BNC).
Ergonomic portable handheld design.
Powered by a 9V Alkaline battery. ( Not included )
Convenient battery access.
Low Battery Indicator.
Simple one button test.
Fast speed testing.
With a soft leather bag for carrying.
High quality warranted.
Specifications:
Cable Tested: UTP and STP LAN cables, terminated in RJ-45 male connectors (EIA/TIA 568); RJ-11 cables with male connectors, 2 to 6 conductors installed; USB cables with Type A flat plug on one end and type B square Plug on other end; BNC cables with male connectors
Faults Indicated: No Connections, short circuit , Opens and Crossover
Low Battery Indicator: LED lights to indicate low battery Power: 1 x 9 V 6F22 DC Alkaline Battery ( Battery Not Included )
Color: Grey
Item dimensions: Appox. 162 x 85 x 25mm (6.38 x 3.35 x 0.98 inch)
Item weight: 164g (Battery excluded)
Package dimensions: 225 x 110 x 43 mm
Package weight: 215g
Package Included:
1 x 4-in-1 Network Cable Tester
1 x Far End Remote Jack (USB RJ45 RJ11) (Attached to the main unit)
1 x BNC Remote Jack
1 x Instruction Manual
Note:The Batteriy are not included in the package.
